CROSS-LINKED POLYETHYLENE INSULATION

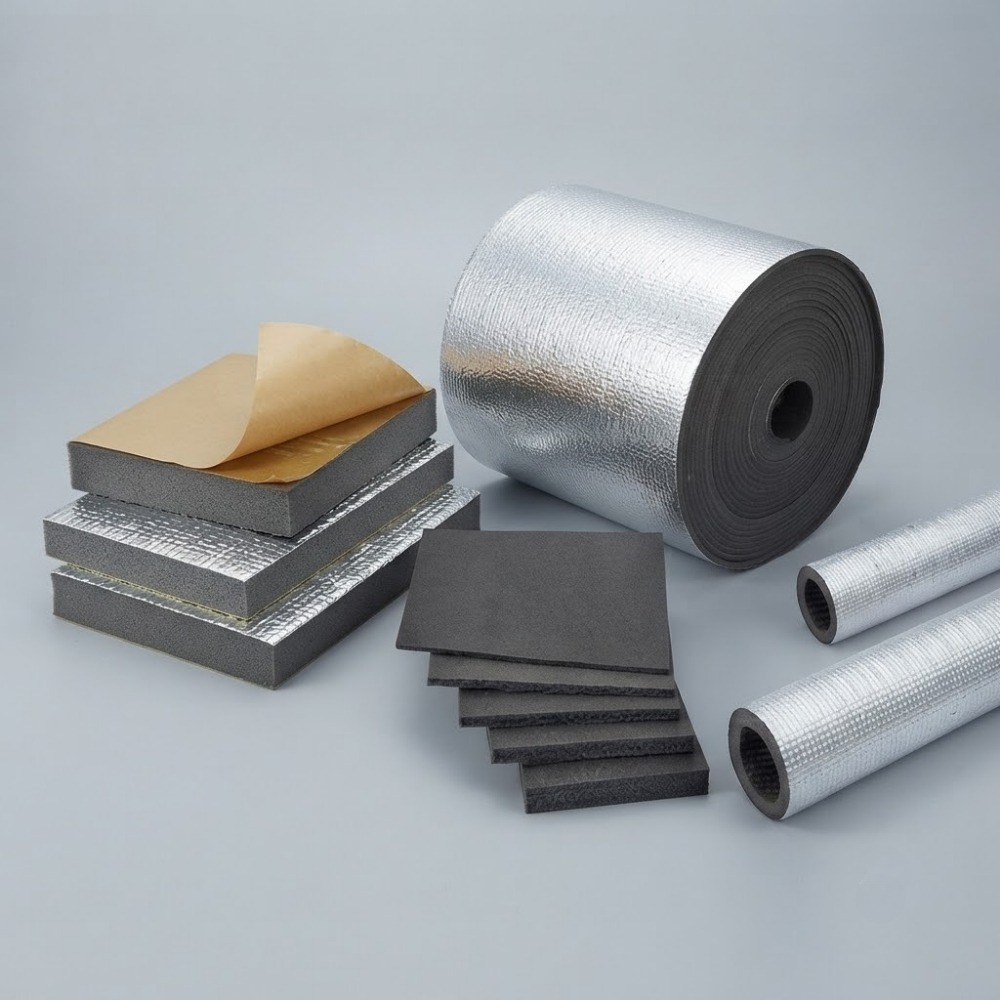

XLPE Foam Insulation
Chemically cross-linked closed cell polyethylene foam for duct, chilled water, hot water, and building insulation.
XLPE (Tube & Sheet)
It is chemically cross-linked closed cell fire retardant polyethylene foam used for duct insulation, chilled water and hot water applications, over deck/under deck insulation, floor insulation, and wall insulation.
100% Closed Cell
Fire Retardant
Low K Value
Chemical Resistant
Flexible & Easy to Apply
Technical Specifications
Density
30 ± 3 Kg/m³
Cell Structure
Closed Cell
Thickness (Tubes & Sheet)
6, 9, 13, 19, 25, 32 mm
Pipe Diameter
¼" – 4" (6 – 100 mm)
Dimensions (Width × Length)
1.25 m × 10 – 30 m
Temperature Range
-40°C to +115°C
Thermal Conductivity
0.032 / 0.034 / 0.038 W/m·K
Oxygen Index
27.7%
Water Vapour Permeability
Negligible
Thermal Stability
Flexible
Horizontal Burning Characteristics
0.72
Flammability Class
S4
Smoke Density Class
SR2
Dropping Class
ST2
Fire Rating (Plain)
Class-I
Fire Rating (with Alu Foil)
Class-0
94 HBF Test
Passed
Self Extinguishing / Non-Dripping
Passed
Applications
- ▸ Duct Insulation
- ▸ Chilled Water & Hot Water Applications
- ▸ Floor & Wall Insulation
- ▸ Underdeck / Overdeck & Roof Insulation
- ▸ HVAC & Building Envelope
Advantages
- ✓ 100% Closed cell structure
- ✓ Very low water absorption
- ✓ Low K Value (excellent thermal performance)
- ✓ Fire Retardant & self-extinguishing
- ✓ Resistant to chemicals, ozone, UV, insects & rodents
- ✓ Thin, flexible, easy to cut and apply
